SWT Chemical & Static Mixers

These economical, easy-to-install, Inline Static Mixers are built for a long, maintenance-free life with a PVC outer construction and a polypropylene baffle. The static mixing design with no moving parts insures an immediate and thorough mix of any combination of gas or liquid. SWT's chemical mixers can eliminate the need for retention tanks in many applications.

APPLICATIONS INCLUDE: Iron and manganese; Hydrogen sulfide; Corrosion control; Boilers; Laundries; Car washes; Cooling towers; Pools, spas, fountains; Tannin; pH control; Polymers and flocculants; Blending; Agriculture; Disinfection; Waste water treatment; Pre- and post-reverse osmosis treatment


For more information about SWT products, contact CIE

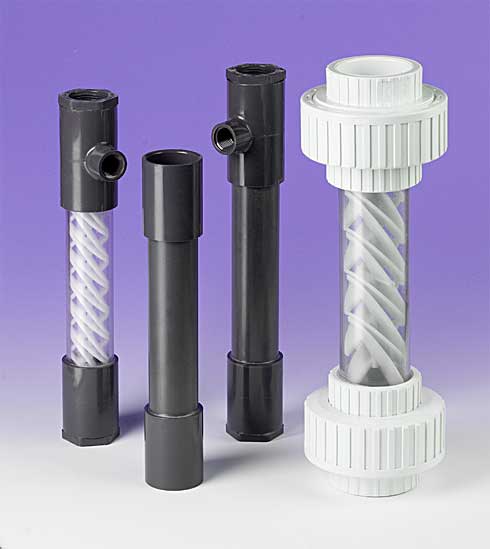

SWT Inline Static Mixers

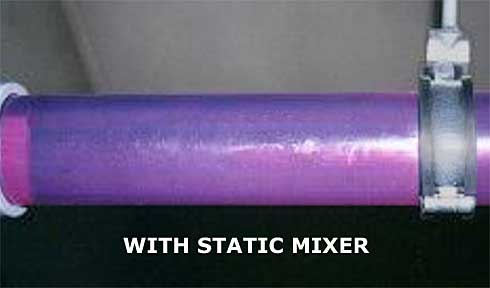

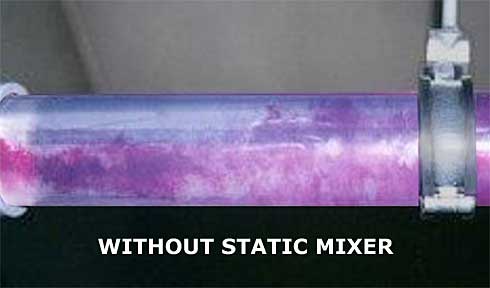

SWT Inline Chemical and Static Mixers Sample Fluid Without SWT Static Mixer Sample Fluid With SWT Static Mixer
  • 0.75 inch FNPT In/Out Pipe Size with 0.5 inch Injection Port
    • NE-MA-1 (Gray Tube, 2‑20 GPM, 2" x 12.5")
    • NE-MA-1CLR (Clear Tube, 2‑20 GPM, 2" x 12.5")
  • 1.0 inch FNPT In/Out Pipe Size with 0.5 inch Injection Port
    • NE-MA-4 (Gray Tube, 3‑25 GPM, 2" x 12.5")
    • NE-MA-4CLR (Clear Tube, 3‑25 GPM, 2" x 12.5")
  • 1.25 inch Socket In/Out Pipe Size with 0.5 inch Injection Port
    • NE-MA-6C (Gray Tube, 5‑30 GPM, 2" x 11")
  • 1.25 inch Socket In/Out Pipe Size without Injection Port
    • NE-MA-6 (Gray Tube, 5‑30 GPM, 2" x 11")
  • 2 inch Union Socket Weld In/Out Pipe Size without Injection Port
    • NE-MA-7 (Clear Tube, 20‑85 GPM, 4.125" x 14")
